1kg 3kg small scale parallel beam load cell for medical industry
Features
Range: 0.3kg-5kg
Material: aluminum alloy
Protection class: IP65
Application: electronic counting scales, platform scales and other
Small size electronic weighing devices.
Specification
| Range | 0.3-5kg |
| Rated sensitive | 0.9±0.1 mV/V |
| Accuracy | C2 & C3 |
| Combined error | ±0.03 %FS & ±0.017 %FS |
| Creep | ±0.03%FS/30min |
| Zero balance | ±1.0%FS |
| Input resistance | 405 ±6Ω |
| Output resistance | 350 ±3Ω |
| Installation resistance | ≥5000MΩ (50Vdc) |
| Compensated temp. range | -10~+40°C |
| Operating temp. range | -30~+60°C |
| Temp. effect on zero | 0.02%FS/10°C |
| Temp. effect on span | 0.02%FS/10°C |
| Excitation(recommended) | 9~12Vdc |
| Recommended platform size | 120mm x 120mm |
| Safe overload | 120%FS |
| Ultimate overload | 150%FS |
| Cable specification | φ3.8mm, cable length:0.45m |

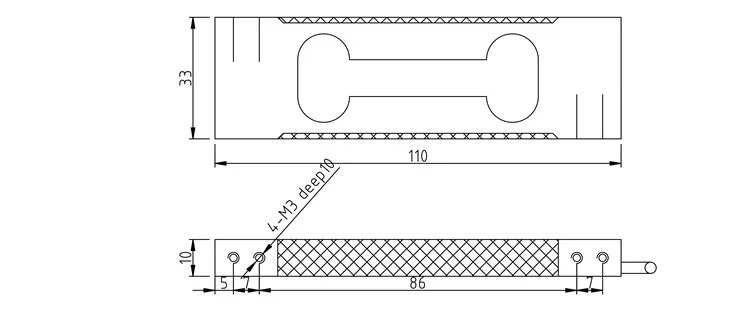

Dimension
Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!
FAQ
Q: What are the applications of single point load cell/parallel beam load cell?
A: Platform scale, package scale, animal scale, sorting machine, beehive scale, etc.
Q:What is the raw material?
A: Aluminum alloy
Q: What is the accuracy/precision?
A: C2 0.03% and C3 0.02%
Q: What is the wire meaning?
A: 5 wires (Red: E+, Black: E-, Green: S+, White: S-, Other color: ground)
Q: How to install?
A: One side are fixed and the other side are forced.
Q: What is the load range for single point load cell?
A: 0.1-1000KG
